topsTreeNodeTask Class Reference

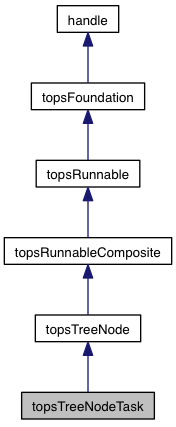

Inheritance diagram for topsTreeNodeTask:

Properties and Events
Property	taskID = -1
	A special-purpose version of a topsTreeNode with properties and functions that facilitate operating with tasks. More...
Property	taskTypeID = -1
	Unique type identifier.
Property	trialData
	An array of structs describing each trial.
Property	trialCount = 0
	Index of current trial (in trialIndices array)
Property	incrementTrialMethod = 'auto'
	How to increment trials in prepareForNextTrial 'auto' ... More...
	incrementTrial
	For controlling incrementTrialMethod (should have a struct of args for each method)
Property	trialIterations = 1
	Number of times to run through this node's trials.
Property	trialIterationMethod = 'random'
	How to run through this node's trials –'sequential' or 'random' order.
Property	randomizeWhenRepeating = true
	Flag indicating whether or not to randomize order of repeated trial.
Property	interTrialInterval = 1.0
	Inter-trial interval, in seconds.
Property	trialIndices = []
	Array of trial indices, in order of calling.
Property	pauseBeforeTask = 0
	Time to pause before task starts. More...
Properties and Events inherited from topsTreeNode
Property	iterations = 1
	number of times to run through this node's children
Property	iterationCount = 0
	count of iterations while running
Property	iterationMethod = 'sequential'
	how to run through this node's children–'sequential' or 'random' order
Property	nodeData = []
	For any node-specific data.
Property	helpers = struct()
	The helpers.
Property	inheritHelpers = 'all'
	Flag indicating whether to inherit all helpers from parent.
Property	helperTypes = {'drawable', 'targets', 'playable', 'readable', 'writable', 'message', 'general'}
	List of helper types.
Properties and Events inherited from topsRunnableComposite
Property	children = {}
	cell array of topsRunnable (or subclass) objects
Properties and Events inherited from topsRunnable
Property	startFevalable = {}
	optional fevalable cell array to invoke just before running
Property	finishFevalable = {}
	optional fevalable cell array to invoke just after running
Property	isRunning = false
	true or false, whether this object is currently busy running
Property	caller
	topsRunnable that invoked run() on this object, or empty
Property	startString = 'start'
	string used for topsDataLog entry just before run()
Property	finishString = 'finish'
	string used for topsDataLog entry just after run()
Properties and Events inherited from topsFoundation
Property	name = ''
	a string name to indentify the object
Property	clockFunction =@topsClock
	clock function, to standardize

Protected Properties
stateMachine Property	completedTrial = false
	The state machine. More...
Property	controlActiveFlags
	Control keyboard active flags, so we can reset them.
Property	trialDataDefaultFields = {'taskID', 'trialIndex', 'trialStart', 'trialEnd'}
	Default trialData fields.

Methods
self	topsTreeNodeTask (varargin)
	% Constuct with optional arguments. More...
	start (self)
	% Start task method
	finish (self)
	% Finish task method
	startTask (self)
	% Blank startTask method – overload in subclass More...
	finishTask (self)
	% Blank finishTask method – overload in subclass
	makeTrials (self, independentVariables, trialIterations)
	% makeTrials More...
	makeTrialData (self, ivvStruct)
	Utility for taking an array of structs, adding default fields and storing as self.trialData. More...
	loadTrials (self, filename)
	% loadTrials More...
	saveTrials (self, filename, variableList)
	% saveTrials More...
trial	getTrial (self, trialCount)
	% Get a trial struct by trialCount index
	setTrial (self, trial, trialCount)
	% Set a trial struct by trialCount index
	setTrialData (self, trialIndex, varargin)
	% Utility to save timing data in the trialData struct using a standard format
data	getTrialData (self, fieldName, trialIndex)
	% Utility for getting trialData value(s)
	setTrialDataValue (self, name, value, trialIndex)
	% Utility function to set the value of a property in the current trial data struct
	blankScreen (self, name)
	% Utility function to blank the screen and save a timestamp More...
Methods inherited from topsTreeNode
self	topsTreeNode (varargin)
	Constuct with name optional. More...
child	newChildNode (self, varargin)
	Create a new topsTreeNode child and add it beneath this node. More...
	addChild (self, child)
	Add a child and process inheritance.
	abort (self)
	Convenient routine to abort running self and children.
	addCall (self, tag, fevalable, name, theObject)
	Add fevalable to the start/finish fevalable call list. It's a. More...
theHelpers	addHelpers (self, constructor, varargin)
	Add helper(s) to the node. More...
helper	getHelperByClassName (self, name)
	Find a helper of the named class.
helper	getControlHelper (self)
	Get the control helper (see topsTreeNodeTopNode)
	run (self)
	Recursively run(), starting with this node. More...
Methods inherited from topsRunnableComposite
self	topsRunnableComposite (varargin)
	Constuct with name optional. More...
fig	gui (self)
	Open a GUI to view object details. More...
	addChild (self, child)
	Add a child beneath this object. More...
	removeChild (self, child)
	Remove a child beneath this object. More...
selector	isChild (self, child)
	Check if child is there.
Methods inherited from topsRunnable
self	topsRunnable (varargin)
	Constuct with name optional. More...
	run (self)
	Do flow control. More...
g	gui (self)
	Show heirarchy of topsRunnable[Composite] objects.
	start (self)
	Log action and prepare to do flow control. More...
	finish (self)
	Log, action and finish doing flow control. More...
	logAction (self, actionName, actionData)
	Log an event of interest with topsDataLog. More...
	logFeval (self, fevalName, fevalable)
	Log a function call with topsDataLog. More...
Methods inherited from topsFoundation
self	topsFoundation (name)
	Constuct with name optional. More...
fig	gui (self)
	Open a GUI to view object details. More...
p	guiPanel (self, varargin)
	Make a topsDetailPanel with details about this object. More...

Protected Methods
	addStateMachineWithDrawing (self, states, varargin)
	% Utility to add a state machine that sets up drawing More...
	addStateMachine (self, states, activeList, compositeChildren, nodeChildren)
	% Utility to add a state machine More...
	startTaskTrial (self)
	% Start a trial ... can be overloaded in task subclass
	finishTaskTrial (self)
	% Finish a trial ... can be overloaded in task subclass
	prepareForNextTrial (self)
	% Finish the current trial and figure out what happens next. If done with this task, call the task's finish() routine, which should allow the parent topsTreeNode to find the next task. More...
	updateStatus (self, taskStatusString, trialStatusString)
	% show status
	setNextState (self, condition, thisState, nextStateIfTrue, nextStateIfFalse)
	% setNextState More...
	debugStates (self, debugFlag)
	% debugStates More...
kb	activateControlKeyboard (self, activateAll)
	% activateControlKeyboard More...
	deactivateControlKeyboard (self)
	% deactivateControlKeyboard More...

Additional Inherited Members
Static Methods inherited from topsFoundation
static c index	cellAdd (c, item, index)
	Add an item to a cell array. More...
static selector	cellContains (c, item)
	Does a cell array conatin an item? More...
static c	cellRemoveItem (c, item)
	Remove an item from a cell array. More...
static c	cellRemoveElement (c, index)
	Remove indexed elements from a cell array. More...
static index selector	findStructName (s, name)
	Where is the given name in the given struct array? More...

Constructor

topsTreeNodeTask()

self topsTreeNodeTask

(

varargin

)

% Constuct with optional arguments.

If any arguments are given, the first one must be the name. Any remaining arguments are property/value pairs – and note that properties can be cell array of strings for property structs

Methods

startTask()

startTask

(

self

)

% Blank startTask method – overload in subclass

Overloaded method can/should fill the following fields, as needed: stateMachineStates stateMachineActiveList stateMachineCompositeChildren

makeTrials()

makeTrials	(	self	,
		independentVariables	,
		trialIterations
	)

% makeTrials

Utility to make trialData array using array of structs, which is by convention stored as task.independentVariables. This struct is assumed to be organized as: struct.(propertyName).values struct.(propertyName).priors trialIterations is number of repeats of each combination of independent variables

makeTrialData()

makeTrialData	(	self	,
		ivvStruct
	)

Utility for taking an array of structs, adding default fields and storing as self.trialData.

ivStruct is the structure of independent variable values

loadTrials()

loadTrials	(	self	,
		filename
	)

% loadTrials

Utility to load trialData from a file.

saveTrials()

saveTrials	(	self	,
		filename	,
		variableList
	)

% saveTrials

Utility to save trialData to a file. Arguments: filename ... string name, possibly with path variableList ... cell array of string names of variables to save

blankScreen()

blankScreen	(	self	,
		name
	)

% Utility function to blank the screen and save a timestamp

name is string name of trialData field

addStateMachineWithDrawing()

addStateMachineWithDrawing ( self  , states  , varargin    )

protected

% Utility to add a state machine that sets up drawing

Varargin is in pairs:

1. name of ensemble to be found in self.helpers.(name).theObject
2. list of state names in which the ensemble should be drawn and the screen flipped automatically (e.g., for dots)

addStateMachine()

addStateMachine ( self  , states  , activeList  , compositeChildren  , nodeChildren    )

protected

% Utility to add a state machine

Arguments: states ... the cell array of state specs for topsStateMachine.addMultipleStates activeList ... This determines which states will correspond to automatic, repeated calls to the given ensemble methods. See topsActivateEnsemblesByState for details. compositeChildren ... Cell array of children to add to the stateMachineComposite nodeChildren ... Cell array of children to add to this topsTreeNode

prepareForNextTrial()

prepareForNextTrial ( self  )

protected

% Finish the current trial and figure out what happens next. If done with this task, call the task's finish() routine, which should allow the parent topsTreeNode to find the next task.

Checks self.completedTrial, a boolean flag indicating that this trial finished or needs to be repeated

setNextState()

setNextState ( self  , condition  , thisState  , nextStateIfTrue  , nextStateIfFalse    )

protected

% setNextState

Utility to conditionally set the next state

debugStates()

debugStates ( self  , debugFlag    )

protected

% debugStates

Utility to set a flag in the state machine that will print out each state name as it is entered

activateControlKeyboard()

kb activateControlKeyboard ( self  , activateAll    )

protected

% activateControlKeyboard

Utility to set up the control keyboard to check for inputs Get all activeFlag values in case the keyboard is being used for something else and the statelist expects certain events to be active... then just set the ones in the control flags struct

deactivateControlKeyboard()

deactivateControlKeyboard ( self  )

protected

% deactivateControlKeyboard

Utility to set up the control keyboard to check for inputs

Properties and Events

taskID

Property taskID = -1

A special-purpose version of a topsTreeNode with properties and functions that facilitate operating with tasks.

This is an alternative approach than making the trials topsTreeNode children. Instead here the trials are defined by an array of structs with trial-specific data that can make it easy to dump that struct into the topsDataLog and keep track of what is going on. Assumes trialData is a struct and automatically adds timing fields. NOTE that this is not yet set up to handle multiple ui objects that each have their own time-base gracefully. Subclasses must re-define startTask finishTask Can optionally define properties: independentVariables ... used by makeTrials() 5/27/18 created by jig Unique identifier

incrementTrialMethod

Property incrementTrialMethod = 'auto'

How to increment trials in prepareForNextTrial 'auto' ...

automatically increment after each good trial 'hazard' ... probabilistically increment wrt fixed hazard

pauseBeforeTask

Property pauseBeforeTask = 0

Time to pause before task starts.

Negative means wait for 't' keypress if control helper is set up

completedTrial

stateMachine Property completedTrial = false

protected

The state machine.

flag if successefully finished trial (or need to repeat)

---

The documentation for this class was generated from the following file:

• topsTreeNodeTask.m
