topsFoundation Class Reference

Overview

Superclass for all of the fundamental Tower of Psych classes.

The topsFoundation superclass provides a common interface for Tower of Psych classes. This includes naming, cell array manipulation, and generating graphical interfaces.

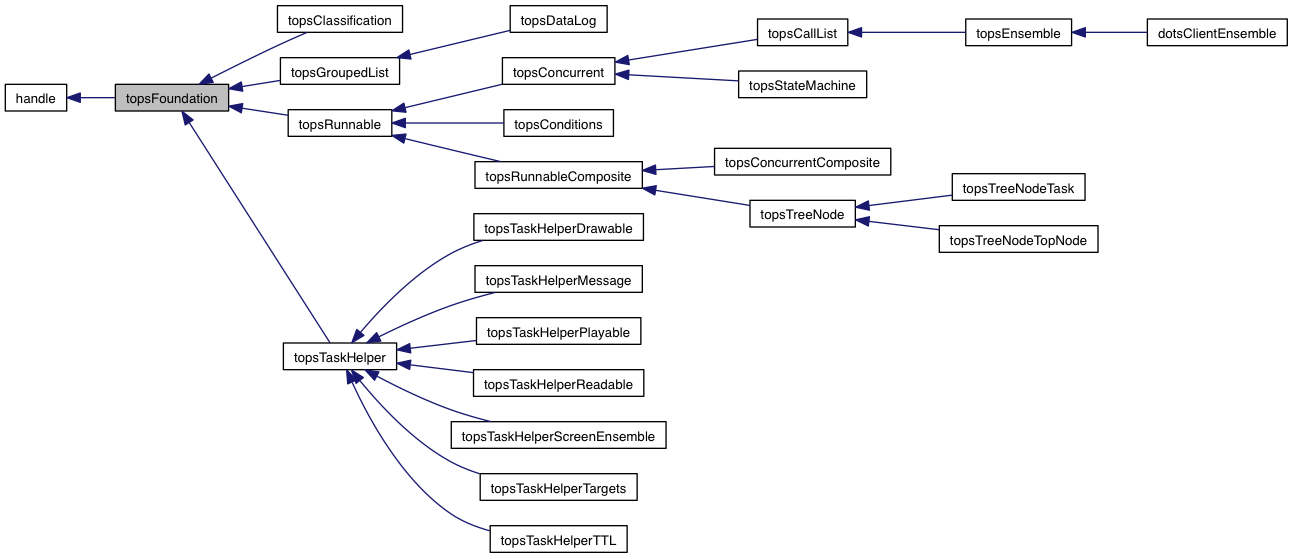

Inheritance diagram for topsFoundation:

Properties and Events
Property	name = ''
	a string name to indentify the object
Property	clockFunction =@topsClock
	clock function, to standardize

Methods
self	topsFoundation (name)
	Constuct with name optional. More...
fig	gui (self)
	Open a GUI to view object details. More...
p	guiPanel (self, varargin)
	Make a topsDetailPanel with details about this object. More...

Static Methods
static c index	cellAdd (c, item, index)
	Add an item to a cell array. More...
static selector	cellContains (c, item)
	Does a cell array conatin an item? More...
static c	cellRemoveItem (c, item)
	Remove an item from a cell array. More...
static c	cellRemoveElement (c, index)
	Remove indexed elements from a cell array. More...
static index selector	findStructName (s, name)
	Where is the given name in the given struct array? More...

Constructor

topsFoundation()

self topsFoundation

(

name

)

Constuct with name optional.

Parameters

name	optional name for this object

If name is provided, assigns name to this object.

Methods

gui()

fig gui

(

self

)

Open a GUI to view object details.

Opens a new GUI with components suitable for viewing objects of this class. Returns a topsFigure object which contains the GUI.

guiPanel()

p guiPanel	(	self	,
		varargin
	)

Make a topsDetailPanel with details about this object.

Parameters

parentGUI	a topsGUI to contain the new panel
position	optional normalized [x y w h] where to locate the new panel within parentGUI

Subclasses may overrride to return a specific topsDetailPanel subclass, or let topsFoundataion generate a generic topsValuePanel.

cellAdd()

static c index cellAdd ( c  , item  , index    )

static

Add an item to a cell array.

Parameters

c	a cell array
item	any item to add to the cell array c
index	optional index where to insert item

add() inserts item into c at the given index. If no index is given, add() appends item to the end of c.

Returns the modified cell array c. May also return the index into c where item was inserted.

cellContains()

static selector cellContains ( c  , item    )

static

Does a cell array conatin an item?

Parameters

c	a cell array
item	any item that might be in c

Returns a logical array the same size as c, which is true where elements of c are equal to item.

cellContains() compares items for equality using Matlab's built-in eq() when it can, or else isequal().

cellRemoveItem()

static c cellRemoveItem ( c  , item    )

static

Remove an item from a cell array.

Parameters

c	a cell array
item	an item to remove from c

Removes all elements of c that are equal to the given item.

Returns the modified cell array, c.

cellRemoveElement()

static c cellRemoveElement ( c  , index    )

static

Remove indexed elements from a cell array.

Parameters

c	a cell array
index	index of the element or elements to remove

Removes the indexed element or elements of c.

Returns the modified cell array, c.

findStructName()

static index selector findStructName ( s  , name    )

static

Where is the given name in the given struct array?

Parameters

s	a struct array with a "name" field
a	"name" value that might be in the struct array

Assumes that s is a struct array with a "name" field. Searches the elements of s for the given name. Returns the index of the first occurence of name. If name was not found, returns numel(s) plus 1. Returns as a second output a logical selector for the elements of s, set to true where name was found.

---

The documentation for this class was generated from the following file:

• topsFoundation.m
